Barksdale巴士德 ML1H，L2H系列本地安裝型溫度開關

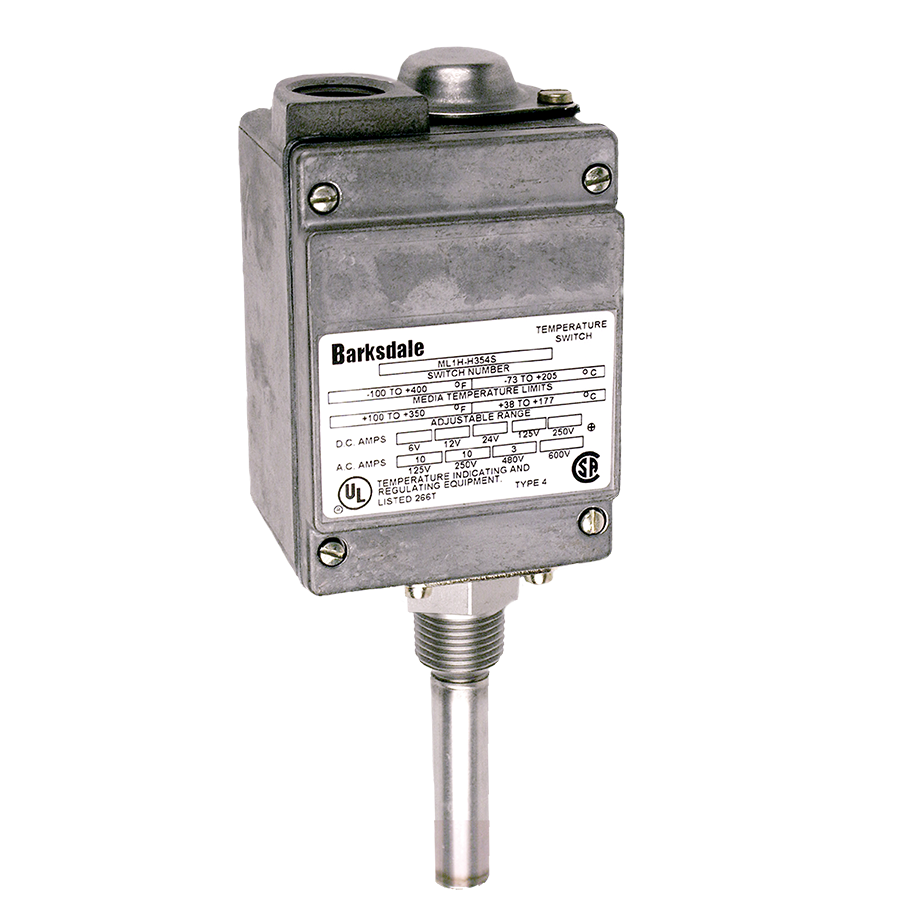

Barksdale巴士德 ML1H，L2H系列本地安裝型溫度開關Series ML1H, L2H Local Mount Temperature Switches
Barksdale巴士德 電子式溫度開關 Electronic Temperature Switch

ML1H，L2H系列描述

Barksdale的ML1H＆L2H系列溫度開關在機械恒溫器中提供高的性能，質量和可靠性。 單個設定點ML1H和雙重設定點L2H可以在-50°至450°F（-45°至232°C）之間切換，測量和控制溫度，而選配的可調差速器可精確控制。 這些本地安裝的開關在溫度源上提供快速響應和精確測量。 ML1H和L2H系列都在125/250 VAC和3安培（480 VAC）下，額定電流為10安培。 標準的3針和6針端子排可簡化安裝。 ML1H＆L2H系列額定值為NEMA 4＆13; 選配 的NEMA 4X結構保護了堅固的壓鑄鋁外殼免受腐蝕性環境的影響。 銅或不銹鋼溫度傳感器可用于處理各種介質。 選配的熱套管允許傳感器在加壓容器中工作至5000 psi。 ML1H＆L2H系列溫度開關適用于您的溫度檢測需求。 Barksdale's ML1H & L2H Series Temperature Switches provide unmatched performance, quality & reliability in a mechanical thermostat. The single set point ML1H and dual set point L2H, can switch, measure & control temperatures from -50° to 450°F (-45° to 232°C), while the optional adjustable differential provides precise control. These locally mounted switches provide fast response and accurate measurements at the temperature source. Both the ML1H & L2H Series are electrically rated for 10 amps @ 125/250 VAC & 3 amps @ 480 VAC. Standard 3- & 6-pin terminal strips simplify installation. The ML1H & L2H Series are rated NEMA 4 & 13; the optional NEMA 4X construction protects the rugged die-cast aluminum enclosure from corrosive environments. Copper or stainless steel temperature sensors are available to handle a wide range of media. Optional thermowells allow the sensor to work in pressurized vessels to 5000 psi. UL listed & CSA approved, ML1H & L2H Series Temperature Switches are perfect for your temperature sensing needs.

ML1H，L2H 本地安裝溫度開關
ML1H，L2H Local Mount Temperature Switches

Barksdale ML1H，L2H 本地安裝溫度開關 資料下載

ML1H，L2H Local Mount Temperature Switches
ML1H，L2H 本地安裝溫度開關

Temperatures from -50° to 450°F

Applications
Oil & gas
Mining
Tanks and reservoirs
Compressors
Plastic machinery
Factory automation
Process equipment
Machine tools and industrial equipment

Datasheets
ML1H, L2H Datasheet
Temperature Switch Accessories
Temperature Switch Products Supplemental Guide
Operating Manuals
Operating Instructions Mechanical Temp Switches
Certificates
UL E56247
Details

溫度范圍-50°至450°F

應用領域
石油和天然氣
礦業
坦克和水庫
壓氣機
塑膠機械
工廠自動化
工藝設備
機床和工業設備

數據表
ML1H，L2H數據表
溫度開關配件
溫度開關產品補充指南
操作手冊
機械溫度開關操作說明
證明書
UL E56247
細節

描述Description

Barksdale的ML1H和L2H系列溫度開關在機械恒溫器中提供高的性能，質量和可靠性。單設定點ML1H和雙設定點L2H可以在-50°至450°F（-45°至232°C）的溫度范圍內切換，測量和控制溫度，而可選的可調差動可提供精確控制。這些本地安裝的開關可在溫度源上提供快速響應和準確的測量。ML1H和L2H系列的電氣額定值分別為125/250 VAC時10 A和480 VAC時3A。標準的3針和6針端子排簡化了安裝。ML1H和L2H系列的額定值為NEMA 4和13；可選的NEMA 4X構造可保護堅固的壓鑄鋁外殼不受腐蝕環境的影響。銅或不銹鋼溫度傳感器可用于處理各種介質。可選的熱套管可讓傳感器在壓力高達5000 psi的容器中工作。ML1H和L2H系列溫度開關獲得UL認證和CSA認證，非常適合您的溫度傳感需求。
Barksdale's ML1H & L2H Series Temperature Switches provide unmatched performance, quality & reliability in a mechanical thermostat. The single set point ML1H and dual set point L2H, can switch, measure & control temperatures from -50° to 450°F (-45° to 232°C), while the optional adjustable differential provides precise control. These locally mounted switches provide fast response and accurate measurements at the temperature source. Both the ML1H & L2H Series are electrically rated for 10 amps @ 125/250 VAC & 3 amps @ 480 VAC. Standard 3- & 6-pin terminal strips simplify installation. The ML1H & L2H Series are rated NEMA 4 & 13; the optional NEMA 4X construction protects the rugged die-cast aluminum enclosure from corrosive environments. Copper or stainless steel temperature sensors are available to handle a wide range of media. Optional thermowells allow the sensor to work in pressurized vessels to 5000 psi. UL listed & CSA approved, ML1H & L2H Series Temperature Switches are perfect for your temperature sensing needs.

ML1H，L2H系列特征

• 可靠和準確的 Reliable & accurate
• 本地感知 Local sensing
• NEMA 4
• UL，CSA和CE認證 UL, CSA & CE approved
• 單路或雙路開關 Single or dual switching
• +/- 1％重復性 +/- 1% Repeatability


ML1H，L2H系列技術規格

布線規程
