不同類型的壓力開關Different types of pressure switches

在最簡單的形式中， 壓力開關 是一種能夠檢測壓力變化并在預定水平上打開或關閉電觸點的裝置。 在這篇文章中， Barksdale 探討了它們的演變，從機電品種到革命性的固態版本，再到今天的尖端電子壓力開關，如 BPS3000。

壓力開關分為三個基本類別：機電式、固態式和電子式。 傳統上，壓力開關一直是機電設備。 然而，今天，固態設備和新型電子壓力開關（例如 Barksdale 的 BPS3000 ）正在向這項相當古老的技術進軍。

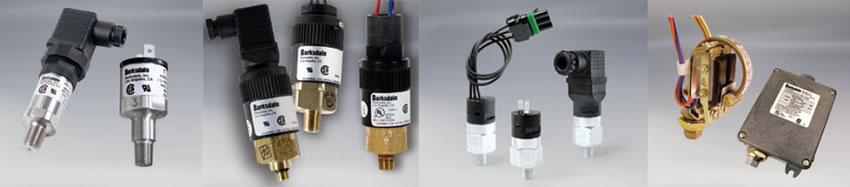

機電式壓力開關

最常見的機電壓力開關 由傳感元件和電氣快動開關組成。 可以使用許多不同類型的傳感元件，但它們有一個共同點：它們會隨著系統壓力的變化而移動。 通過它們的運動，它們直接作用于快動開關觸點的打開和關閉。

差壓開關略有不同。 有兩個壓力端口，一個用于低壓側，另一個用于高壓側。 低壓和高壓流體作用于同一傳感元件。 由于每一側的表面積相等，因此當壓力相等時，開關處于平衡狀態。 隨著高壓側的壓力增加或低壓側的壓力降低，活塞向上移動，并在預設的壓差下激活快動開關。

開關通常根據所采用的 傳感器技術 類型組合在一起。 傳感器的特性往往決定了開關的相對精度和壽命。

典型開關類別

膜片開關：使用直接作用于快動開關的焊接密封金屬膜片。

• 壓力高達 10.43 bar 和真空。
• 重復性 ±1%。
• 低循環率（小于 25 個循環/分鐘）。

波登管開關：焊接密封波登管用于驅動快動開關。

• 壓力從 3.45 到 1241.06 bar。
• 重復性 ±1%。
• 低循環率（小于 25 個循環/分鐘）。

隔膜活塞（Dia-Seal 活塞）開關：作用在活塞上的彈性隔膜，進而
驅動快動開關。

• 壓力從真空到 110.32 psi。
• 重復性 ±2%
• 250 萬次循環。

活塞開關：O 形環密封活塞直接作用在快動開關上。

• 壓力達到 827.37 巴。
• 重復性 ±2%
• 250 萬次循環。

固態壓力開關

1980 年，Barksdale 推出了第一個 固態壓力開關 。 這是一個結合了粘合應變計傳感器和雙向可控硅開關的簡單裝置。 如今，固態壓力開關種類繁多，具有一到四個或更多開關點、數字顯示、模擬和數字輸出以及完全可編程性。

在許多情況下，它們跨越了從簡單的開關到開環控制器的界限。 除了打開或關閉壓力開關電路外，它們還提供比例模擬 4-20 mA 信號或數字輸出。 模擬信號可以與 PLC（可編程邏輯控制）、DCS（分布式控制系統）和計算機連接。 主要優勢在于循環壽命。 固態開關的使用壽命通常為 1 億次。

與機電開關相比，固態壓力開關具有許多優勢，包括：

• 更長的循環壽命。
• 將精度提高到 ±0.5%。
• 高抗沖擊和振動。
• 處理各種系統壓力的能力。
• 廣泛的頻率響應。
• 優異的長期穩定性。

BPS3000 電子雙壓力開關

在開創固態壓力開關四分之一個世紀后，Barksdale 推出了下一個改變游戲規則的產品：BPS3000 電子雙壓力開關。 這種數字壓力開關代表了壓力開關發展的下一步，并具有一些真正令人印象深刻的屬性。

• 測量范圍：表壓：0 - 9000 psig，絕對壓力：0 - 150 psia。
• 外殼等級：4X 型 (IP65) / 6 型 (IP67)。
• 測量范圍：0...0.2 bar 至 0...600 bar 表壓（可切換到 psi + Mpa）。
• 適合室內或室外使用。
• 最大限度。 2個開關點。
• 模擬輸出 4 - 20 mA 或 0 - 10 V。
• 可旋轉 320° 顯示和電氣連接。
• 菜單導航參考 VDMA 標準。

有關 Barksdale 全系列開關產品的更多信息，請聯系 010-84282935 或訪問 www.qaxozkz.com.cn。

Different types of pressure switches

In its simplest form, a pressure switch is a device capable of detecting a pressure change and, at a predetermined level, opening or closing an electrical contact. In this article Barksdale explores their evolution, from electromechanical varieties, through to the revolutionary solid-state version and today's cutting edge electronic pressure switches, like the BPS3000.

Pressure switches fall under three basic classifications: electromechanical, solid state and electronic. Traditionally, pressure switches have been electromechanical devices. Today, however, inroads into this fairly ancient technology are being made by solid-state devices and the new breed of electronic pressure switches, such as Barksdale's BPS3000 .

Electromechanical Pressure Switches

The most common electromechanical pressure switches are composed of a sensing element and an electrical snap-action switch. A number of different types of sensing elements can be used but they have one thing in common: they move in response to changes in the system pressure. Through their movement they directly act on the opening and closing of the snap-action switch's contacts.

Differential pressure switches are slightly different. There are two pressure ports, one for the low pressure side and the other for the high pressure side. The low pressure and high pressure fluids act on the same sensing element. Since the surface areas are equal on each side, the switch is in equilibrium when the pressures are equal. As pressure on the high-pressure side increases, or pressure on the low side decreases, the piston moves up and, at a preset differential pressure, activates the snap switch.

Switches are commonly grouped together based on the type of sensor technology employed. The characteristics of the sensor tend to define the relative accuracy and life one can expect from the switch.

Typical switch categories

Diaphragm Switches: use a weld-sealed metal diaphragm which directly acts on a snap-action switch.

• Pressure up to 10.43 bar and vacuum.
• Repeatability ±1%.
• Low cycle rates (less than 25 cycles/min).

Bourdon Tube Switches: a weld-sealed bourdon tube is used to actuate the snap-action switch.

• Pressure from 3.45 to 1241.06 bar.
• Repeatability ±1%.
• Low cycle rates (less than 25 cycles/min).

Diaphragm Piston (Dia-Seal Piston) Switches: an elastomeric diaphragm acting on a piston which in turn
actuates the snap-action switch.

• Pressure from vacuum to 110.32 psi.
• Repeatability ±2%
• 2.5 million cycles.

Piston Switches: an O-ring sealed piston acts directly on the snap-action switch.

• Pressure to 827.37 bar.
• Repeatability ±2%
• 2.5 million cycles.

Solid-State Pressure Switches

In 1980, Barksdale introduced the first solid-state pressure switch . It was a simple device which combined a bonded strain gage sensor and triac switch. Today, there are a wide variety of solid-state pressure switches that have one to four or more switch points, digital displays, analog and digital outputs, and full programmability.

In many cases they cross the line from being simply a switch to an open-loop controller. In addition to opening or closing the pressure switch circuit(s), they provide a proportional analog 4-20 mA signal or digital output. The analog signal can interface with PLCs (Programmable Logic Controls), DCSs (Distributed Control Systems) and computers. The major advantage lies in cycle life. Solid-state switches routinely have an operational life of 100 million cycles.

Solid-state pressure switches provide a number of advantages over electromechanical switches, including:

• Much longer cycle life.
• Improved accuracy to ±0.5%.
• High resistance to shock and vibration.
• The ability to handle a wide range of system pressures.
• Broad frequency response.
• Excellent long-term stability.

BPS3000 Electronic Dual Pressure Switch

A quarter of a century after pioneering the solid-state pressure switch, Barksdale has introduced the next game-changer: the BPS3000 Electronic Dual Pressure Switch. This digital pressure switch represents the next step in the pressure switch evolution and features some truly impressive attributes.

• Measuring range: gauge: 0 - 9000 psig, absolute: 0 - 150 psia.
• Enclosure Rating: Type 4X (IP65) / Type 6 (IP67).
• Measuring ranges: 0...0.2 bar to 0...600 bar gauge (switchable to psi + Mpa).
• Suitable for indoor or outdoor usage.
• Max. 2 switch points.
• Analogue output 4 - 20 mA or 0 - 10 V.
• Rotatable 320° display & electrical connection.
• Menu navigation refers to VDMA standard.
